In a highly competitive market, the BIT-MSE-209Pro stands out with its superior performance and future-proof features. It supports a wide range of input and output resolutions, including 4K60, ensuring compatibility with the latest display technologies. Its pure hardware design ensures reliability and ease of use, while its firmware upgradeability ensures it remains at the forefront. Whether for corporate presentations, creative studios, or educational institutions, the BIT-MSE-209Pro delivers a competitive edge for high-end multi-screen applications.
Multi-screen 4K60 Video Wall Controller HDCP 1X3 1X4 Multi-screen LCD Exhibition Hall Exhibition 2In 9 Output Features
1,BIT-MSE-209Pro is an industrial-grade high-performance product developed specifically for the fusion of multi-desktop operation and multi-channel projection. It uses HDMI/DP input interface and HDMI output interface.
2,The interface supports a maximum of 2 inputs and 9 outputs, and can be combined with any splicing mode within 9 screens.
3,A single input channel supports maximum resolution within3840x2400@60Hz bandwidth, and the input resolution is downwardcompatible according to the multiple of the splicing mode for theoutput single screen.
4,Output single channel maximum support 1920x1200@60Hz downward compatible with conventional resolution (output support customized special resolution).
5,Fixed EDID design, can customize the input resolution.
Multi-screen 4K60 Video Wall Controller HDCP 1X3 1X4 Multi-screen LCD Exhibition Hall Exhibition 2In 9 Output Application scenarios
It is mainly applied to the following scenarios:
1. Multi-screen LCD exhibition hall exhibition
2.Video projector exhibition hall exhibition
3.Surveillance or command center
4. Multimedia video teaching
5.Engineering meeting room6. Digital medical display, etc
Multi-screen 4K60 Video Wall Controller HDCP 1X3 1X4 Multi-screen LCD Exhibition Hall Exhibition 2In 9 Output specifications
| Product name | BIT-MSE-209Pro |
| Input interface | 2-way HDMI 2.0/DP 1.2 (choose one of two) |
| HDCP features | HDCP 2.2 is supported |
| Transmission distance | ≤5 meters |
| Input color format | RGB888, 24bit |
| Output port | 9-way HDMI 1.3 |
| Power supply | DC 12V/V/2A |
| Maximum power consumption | 22W |

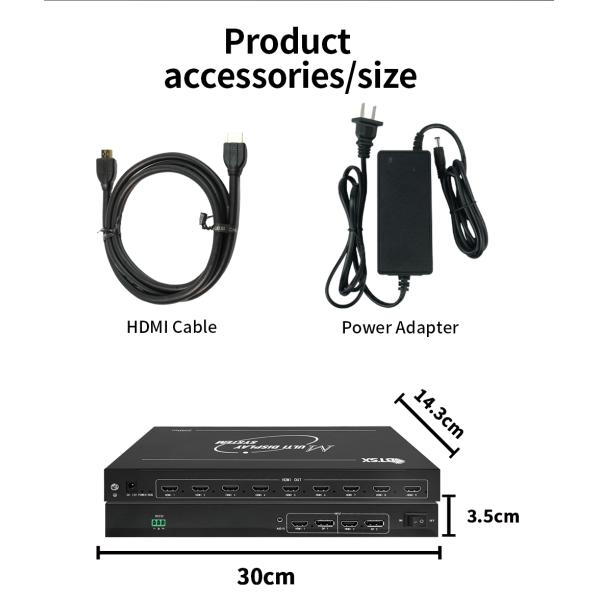

| Product dimensions | 300mm* 142mm* 35mm |
| After sales service | 3 years warranty |
